Keyboard And Mouse Game Console Built-In Converter, Supports PS3, PS4, Xbox 360, Xbox One, And Switch

Keyboard And Mouse Game Console Built-In Converter, Supports PS3, PS4, Xbox 360, Xbox One, And Switch

Regular price HK$247.00
Regular price HK$0.00 Sale price HK$247.00
Sale Sold out
color

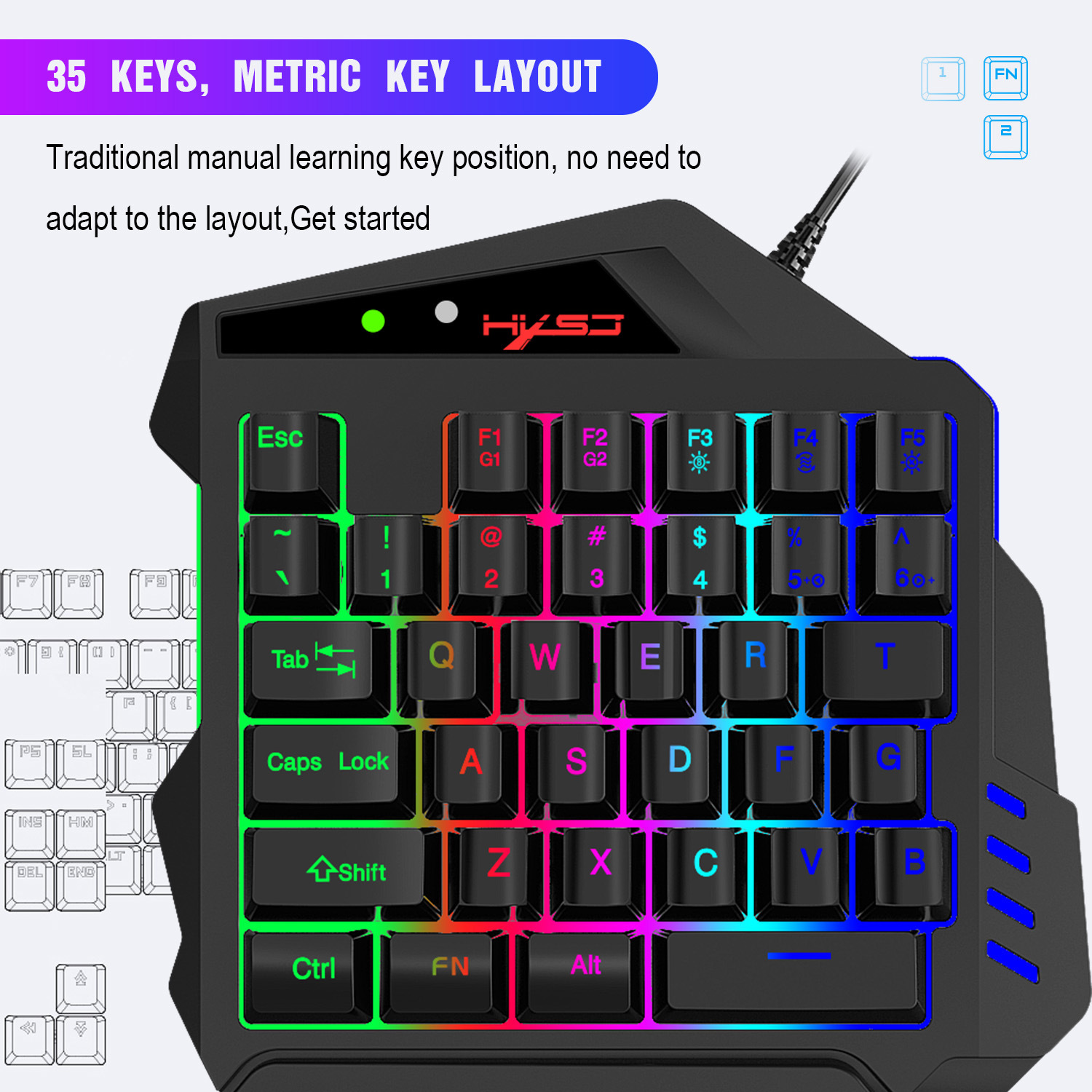

Keyboard Parameters:

Name: One-handed keyboard built-in game console converter

Product interface: USB 2.0

Press the number of keys: 35 keys

Key life: 20 million times

Product line length: 1.55m(Braided wire)

Flash ROM: 32 bytes

EEPROM: Built-in 2K bytes

Operating voltage : VDD = 3.3V - 5.5V

Working current: 100mA

Ambient temperature: - 40°C - + 85°C

Programming temperature: 0°C - + 85°C

Lighting mode: RGB lighting, multiple lighting modes can be switched

Supported platforms: PS3, PS4, XBOX 360, XBOX one, SWITCH



Wired Mouse Parameters:

Feature:

1. Chipset: Sunplus 195+MCU IC have memory

2. Lights off and on:Mid button+ DPI Loop +

3. Light mode: 7-color synchronous breathing light.

4.A195 Sensor can be set DPI resolution up to 6400DPI

(800/1600/3200/6400).

5.Large and comfortable Mouse Wheel design.



Specifications:

Product model: A876 Gaming Mouse

Human body engineering design

8 buttons (Left, Right, Middle,forward,back,

DPI +/DPI-,fire key)

Light mode: 7-color synchronous breathing light

4-level adjustable DPI, Max.6400 DPI

Voltage rating / electric current: DC 5V / 100mA

USB plug and play

Switch life:10million cycle

Cable length: 150cm

Pooling rate : 125Hz

FPS: Max4000Fps

Accelerated Speed: 12G

IPS: 40 inch/sec

Support Windows 2000 /XP 1 win71 win8 /win10 Vista 32bit IOS or latest.

Size and weight parameters:

Mouse net weight: 138g

Mouse size: 12.5*8*4 cm

Keyboard net weight: 357g

Keyboard size: 25.3*18*3.7cm

Package Weight:600g

Package Size:33.8*18.5*4.5cm



Package Included:

1* Gaming Keyboard(35 keys)

1* Gaming Mouse

2* English User manual



The keyboard backlight function is controlled as follows:

Fn+F3= 8 kinds of backlight mode switching (red light → blue light → green light→ purple light → sky blue light → yellow light → white light → rainbow light)

Fn+F4= Wave/Colorful Horse Race: Colorful color gradient running water.

The default wave mode. Press again to enter the colorful cycling horse mode.

Fn+F5= Backlight off/on, cycle switch.

FN+5 = Adjust the streamer speed to become faster

FN+6 = Adjust the streamer speed to slow down

Two USB interface functions:

Connect the USB cable to the game console, press the logo, and connect the original handle with the mouse Connect to the corresponding USB interface:

1. The product converts the keyboard and mouse functions to the corresponding game platform for game operation

2. The product must be connected to the original wired controller for wired guidance (except for the SWITCH host) in order to normally convert the keyboard and mouse to the corresponding game platform

3. Supported platforms: PS3, PS4, XBOX 360, XBOX one, SWITCH

4. The default two sets of key values, the mouse corresponds to the game platform function

5. The direction of the mouse axis can be switched by pressing ESC+CAPSLOCK+A/S/D/F/G

6. The mouse movement speed can be adjusted, and the speed of the axis can be adjusted as a whole through the ESC+R buttons.

7. Support USB upgrade

8. Product working voltage: DC 5V

LED corresponding mode:

■ When the one-handed keyboard is not connected to peripherals,

the right indicator light ② will be red(Check the digital number against the picture in the manual)

■ When the original handle and mouse peripherals are inserted,

the left indicator light ① shows green light(Check the digital number against the picture in the manual)

1. Set keyboard and mouse functions

2. Connect the keyboard to the game console, and insert the corresponding original wired controller into the designated interface of the device

* Press ESC+SPACE on the keyboard at the same time to enter the mode of setting the keyboard and mouse button functions by yourself (the setting indicator lights up at this time).

* Press and hold the function button of the original handle

* Click the button on the keyboard or mouse to be set

* Release the original wired handle button

* At this time, the function of the button held down by the original handle is set to the pressed

keyboard or mouse button. (Original handle buttons function normally and will not be affected by this setting)

* After setting, press ESC+SPACE on the keyboard to save the current setting and exit the setting mode

* For example: press ESC+SPACE (space bar) to enter the setting mode, press and hold the A key of the original SWITCH handle, press the F key on the keyboard, and release the A key of the original

SWITCH handle. At this time, press the F key on the keyboard, and it will appear The function of the handle A key.

3. Cancel the function set by keyboard and mouse

Note:

* When setting the left and right joystick function of the original wired handle to the keyboard, the

direction of the joystick must be pushed to the end, and only the four directions of the joystick are set up,

down, left and right

* For the setting of the mouse, when the original wired joystick must be pushed to the end, the mouse

will slide in the corresponding direction and the mouse only supports the corresponding function of the

left and right joystick directions.

* The original handle cross keys support 8 directions setting

* During the setting process, if you do not hold down the original wired handle function key or push the joystick to the end, the original set function of the keyboard or mouse will be cleared

4. Mouse speed adjustment,Product support mouse

Movement speed adjustment, the default is the third gear.

DPI speed adjustment: ESC+CAPSLOCK+A/S/D/F/G (can be adjusted cyclically).

5. Mouse Y axis direction switch

The control of the Y-axis of some games is opposite to the setting value. The game operator can adjust the Y-axis direction of the mouse by pressing ECS+R according to their own needs.

6. Description of function switching

※ Enter setting mode: ESC+SPACE

※ Exit setting mode: ESC+SPACE
